Part Number: 5V2128 / Vendor ID #: 7626

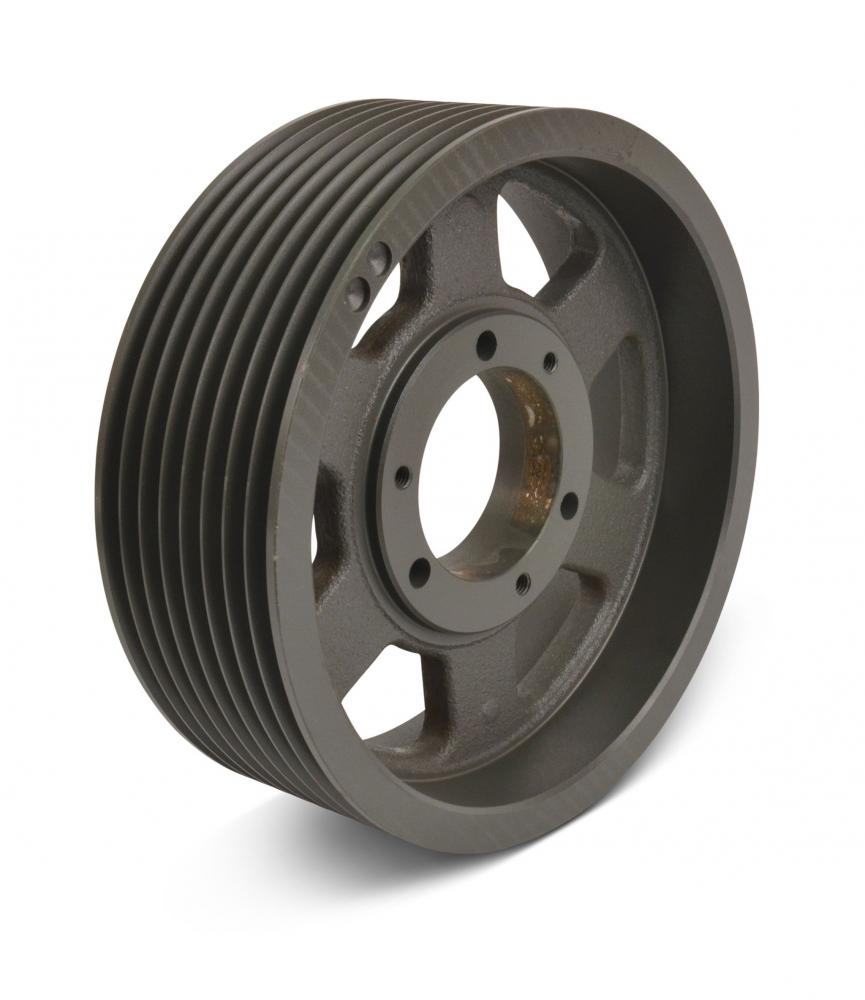

5V2128 Bushing Bore V-Belt Pulley
by TB Woods
Call for Price
Item Sales Info
Add To Wishlist
Compare Item
Email
Print
Availability
- Manufacturer availability unavailable.
Dimensions
Inertia WR² [Imperial]: 58.6 lb-ft²
Weight [Imperial]: 120 lbs
(OAL) Overall Length [Imperial]: 5.8125 in
E Dimension [Imperial]: 0.31 in
Narrow Sheave, 5V Belt Section, 21.2 O.D. in., 8 Grooves, Cast Iron Material
TB Wood’s Narrow (Ultra-V) sheaves include three cross sections: 3v, 5v and 8v and are constructed of fine grain, high tensile cast iron and have been carefully engineered to assure maximum performance over a long life span. For applications with special requirements, Wood’s sheaves are also available on a made-to-order basis in either cast or ductile iron, in Sure-Grip® or bored-to-suit construction.
Industrial Category:
Power Transmission
Industrial Subcategory:
Sheaves and Pulleys
(F) Face Width [Imperial]:
5.81 in
(ID) Inside Diameter [Imperial]:
19.25 in
(K) Hub Location [Imperial]:
1.56 in
(OAL) Overall Length [Imperial]:
5.8125 in
(OD) Outside Diameter [Imperial]:
21.20 in
Balance:
Standard, 1 plane
Belt Section:
5V
Belt Section Size:
5V;5VX
Bore Type:
Quick Disconnect Bushing
Bushing:
J
Bushing Bore Range [Imperial]:
1 7/16 - 4 1/2 in
California Proposition 65:
WARNING: Cancer- www.p65warnings.ca.gov
Datum Diameter [Imperial]:
21.20 in
E Dimension [Imperial]:
0.31 in
Inertia WR² [Imperial]:
58.6 lb-ft²
L Dimension [Imperial]:
4.50 in
M Dimension [Imperial]:
1.00 in
Material:
Cast Iron
Max RPM:
1,180 RPM
Number of Grooves:
8
Number of Hubs:
2
Pitch Diameter [Imperial]:
21.20 in
Primary UOM:
Imperial
Product Group:
Belted Drives
Product Sub-Group:
V-Belt Sheaves and Pulleys
Pulley Construction:
Spoked
Sheave Type:
Narrow
Weight [Imperial]:
120 lbs
