Part Number: BK2658 / Vendor ID #: 7626
BK2658 FHP Bored-to-size Sheave
by TB Woods
Call for Price
Item Sales Info
Add To Wishlist
Compare Item
Email
Print
Availability
- Manufacturer availability unavailable.
Dimensions
(ID) Inside Diameter [Imperial]: 2.25 in
(OD) Outside Diameter [Imperial]: 2.75 in
Datum Diameter [Imperial]: 2.40 in
Max RPM: 9,100 RPM
Specific Products: BK2658
FHP Sheave, B-5L-A-4L Belt Section, 2.75 O.D. in., 1 Grooves, Cast Iron Material
TB Wood’s light-duty sheaves are available in two types, both with one and two grooves. "AK" sheaves are made to accommodate A (4L) belts; "BK" sheaves are made for A (4L) or B (5L) belts. The two lines of sheaves have identical pitch diameters when using A or 4L belts. Wood’s light-duty sheaves can be equipped with Wood’s "QT" Sure-Grip QD-type bushings, quick-detachable tapered bushings that are split through flange and tapered surface to provide a true clamp that is comparable to a shrink fit.
Industrial Category:
Power Transmission
Industrial Subcategory:
Sheaves and Pulleys

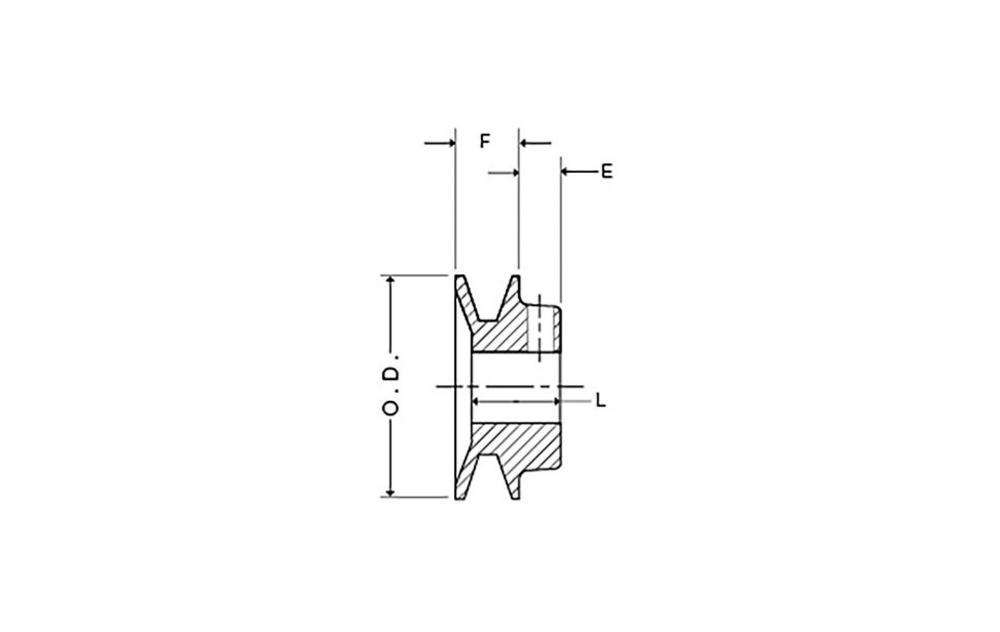

(F) Face Width [Imperial]:
0.81 in
(ID) Inside Diameter [Imperial]:
2.25 in
(OAL) Overall Length [Imperial]:
1.25 in
(OD) Outside Diameter [Imperial]:
2.75 in
Belt Section:
B-5L-A-4L
Belt Section Size:
A;AX;AA;B;BX;BB;4L;5L
Bore Type:
Finished with Keyway
Bore-to-Size Bore Diameter [Imperial]:
0.6250 in
Bore-to-Size Keyseat [Imperial]:
3/16 x 3/32 in
California Proposition 65:
WARNING: Cancer- www.p65warnings.ca.gov
Datum Diameter [Imperial]:
2.40 in
E Dimension [Imperial]:
0.44 in
Hub Diameter [Imperial]:
1.68750 in
Hub Location [Imperial]:
-0.44 in
Hub Projection [Imperial]:
0.43750 in
Inertia WR² [Imperial]:
0.00 lb-ft²
L Dimension [Imperial]:
1.09 in
Material:
Cast Iron
Max RPM:
9,100 RPM
Number of Grooves:
1
Number of Hubs:
1
Pitch Diameter [Imperial]:
2.81 in
Primary UOM:
Imperial
Product Group:
Belted Drives
Product Sub-Group:
V-Belt Sheaves and Pulleys
Pulley Construction:
Plain
Sheave Type:
FHP Bored-to-size
Weight [Imperial]:
0.9 lbs
